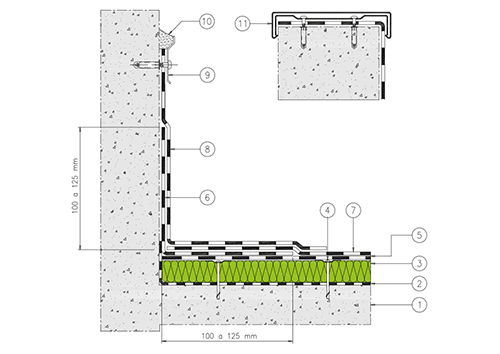

2.1 - INSULATED NON-WALKABLE COVERING CONCRETE AND MASONRY SUPPORT: THERMAL INSULATION - VISIBLE SURFACE
  1. Support treated with Primer V70
  2. Vapour control layer or barrier in Poliguaina to 3 kg/mq / Poliguaina AL 3 kg/mq
  3. Nordpol coupled heat insulating element
  4. Mechanical fitting
  5. NB polymer modified bitumen underlayer membrane
  6. NB bitumen membrane corner strengthening strip
  7. NB polymer modified mineral bitumen cap sheet membrane
  8. Doubling corner made with NB mineral bitumen membrane cap sheet
  9. Metallic flashing
  10. Sealing

Alternatively:

  1. Wall coping cove
2.1 - INSULATED NON-WALKABLE COVERING CONCRETE AND MASONRY SUPPORT: thermal insulation - visible surface,
