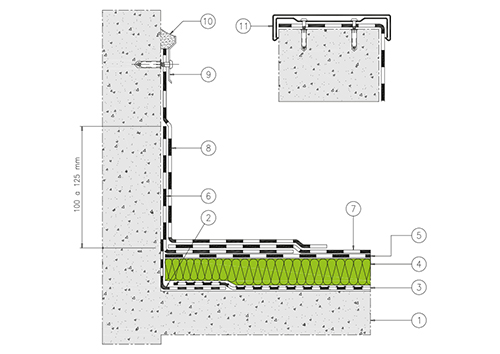

2.2 - INSULATED NON-WALKABLE COVERING CONCRETE AND MASONRY SUPPORT: ASHLAR MEMBRANE – THERMAL INSULATION – VISIBLE SURFACE
  1. Support treated with Primer V70
  2. NB bitumen membrane corner joint strip
  3. Vapour screen or barrier in Isolvapor NB ashlar membrane
  4. Nordpol coupled heat insulating element
  5. NB polymer modified bitumen underlayer membrane
  6. NB bitumen membrane corner strengthening strip
  7. NB polymer modified mineral bitumen cap sheet membrane
  8. Doubling corner made with NB mineral bitumen membrane cap sheet
  9. Metallic flashing with mechanic fitting
  10. Sealing

Alternatively:

  1. Wall coping cover
2.2 - INSULATED NON-WALKABLE COVERING CONCRETE AND MASONRY SUPPORT: ashlar membrane – thermal insulation – visible surface,
